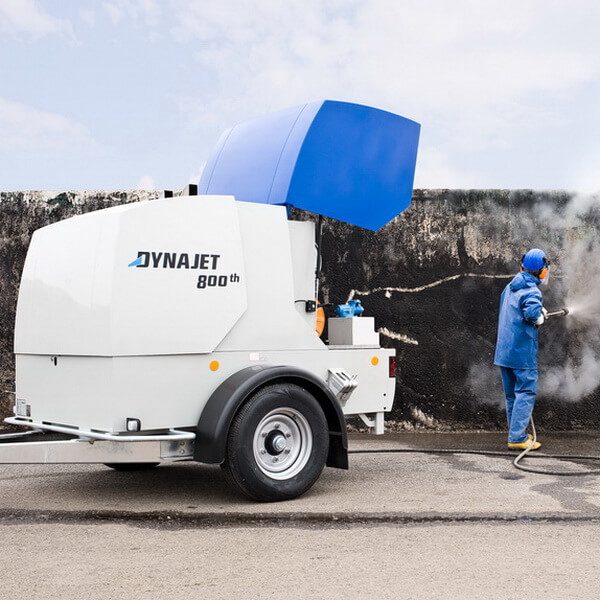

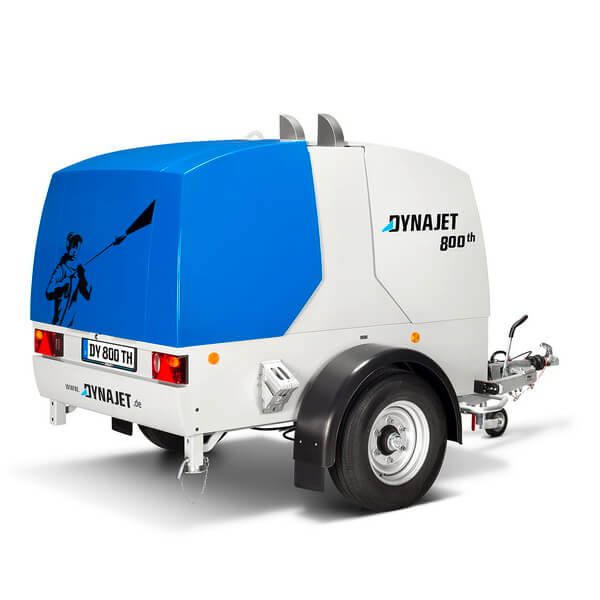

جت ماشین آبگرم ۸۰۰ بار (DYNAJET مدل ۸۰۰th)

قیمت: لطفا تماس بگیرید

PRESSURE
System	Hot- and cold-water high-pressure cleaners
Type	Trailer
Pressure class	۸۰۰ bar (11,600 PSI)
Pressure variable	Yes
Minimal pressure	۳۰۰ bar (4,350 PSI)
HYDRAULICS
Minimum flow rate	۱۰ l/min (2.65 USgal/min)
Maximum flow rate	۲۱ l/min (5.56 USgal/min)
Pump revolution speed	Max. 800 rpm
Hydraulic power	۳۲ kW (44 Hp)
Pump	Triplex plunger pump with package seal, rinsing/cooling and carbide plungers
Volume water tank	۱,۰۰۰ l (264.55 USgal)
Temperature	Max. 95 °C
THREADED CONNECTION
Input port	GEKA
Output port	M24x1.5 DKO ET
DRIVE
Drive type	Diesel motor
Motor power	۳۴ kW (46.2 Hp)
Motor speed	Max. 2600 rpm
Motor type	Deutz 3-cylinder diesel motor (oil-cooled)
Power transmission from motor to pump	Belts
Fuel consumption	۱۰٫۰ l/h (2.65 USgal/h) (at full load)
Volume fuel tank	Approx. 70 l (18.50 USgal)
OTHERS
Medium	Clear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
Chassis	Single-axle trailer with brake
Weight in kg	۱,۶۴۰٫۰
Dimensions (L/W/H)	۳۷۱ x 207 x 208 cm
Dimensions open (L/W/H)	۴۱۱ x 205 x 264 cm
Heating power oil burner/Dynabox	Dual oil burner with 2x max. 65 kW (90 Hp)
Volume heating oil tank	۱۰۵ l (27.73 USgal)
Article number	۱۵۲۹۰۱۰W
